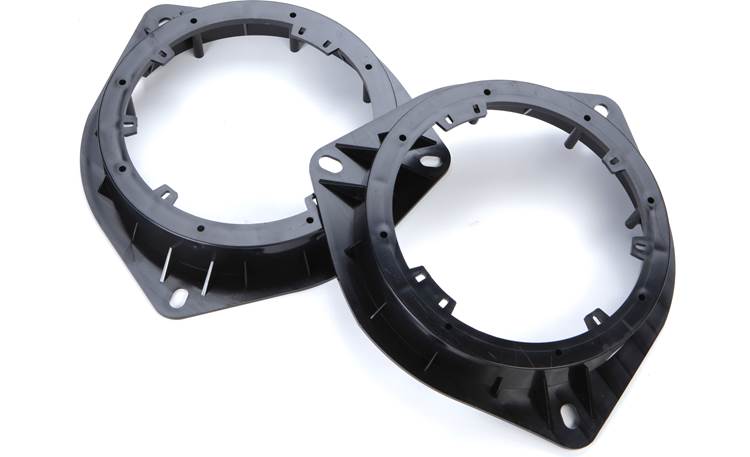

Metra 82-8153 Speaker Mounting Brackets
Metra 82-8153 Speaker Mounting Brackets Autotrendsms Install 6", 6-1/2", or 6-3/4" speakers in select 2001-07 Toyota vehicles Features Overview: As of 3/27/19, the 82-8153 is compatible with select 2001-2007 Toyota trucks. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ and 6¾ speakers. (Please enter your vehicle information to confirm fit.) 6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file. 6½ Speakers: 6½ speakers with a 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket. 5¼ Speakers: While a 5¼ speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼ is approximately ½" smaller than the opening in the bracket, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker. Dimensions: Inner Diameter: 5.733" (5.1" with inner tabs attached) Height: 1.34" Three-Hole Tab Spacing (6½): 4.546"-5.014" Symmetrical Four-Hole (6½ and 5¼): Perimeter: 3.687"-4.126" Diagonal: 5.271"-5.731" Ford Four-Hole (6½): Minor Axis: 3.687"-4.126" Major Axis: 4.546"-5.014" Four-Hole Spacing (6¾): Perimeter: 4.261"-4.569" Diagonal: 6.089"-6.398
Autotrendsms

Metra 82-8153 Speaker Mounting Brackets

Code: N/A
Add Your Review
$14.99
In Stock
Add to Wishlist
Category: Off Road, Speaker Adapter

  • Same Day Shipping

  • Highest Quality

  • 1 Year Warranty

Install 6", 6-1/2", or 6-3/4" speakers in select 2001-07 Toyota vehicles

Overview: As of 3/27/19, the 82-8153 is compatible with select 2001-2007 Toyota trucks. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ and 6¾ speakers. (Please enter your vehicle information to confirm fit.)

6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.

6½ Speakers: 6½ speakers with a 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket.

5¼ Speakers: While a 5¼ speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼ is approximately ½" smaller than the opening in the bracket, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker.

Dimensions:

  • Inner Diameter: 5.733" (5.1" with inner tabs attached)
  • Height: 1.34"
  • Three-Hole Tab Spacing (6½): 4.546"-5.014"
  • Symmetrical Four-Hole (6½ and 5¼):
    • Perimeter: 3.687"-4.126"
    • Diagonal: 5.271"-5.731"
  • Ford Four-Hole (6½):
    • Minor Axis: 3.687"-4.126"
    • Major Axis: 4.546"-5.014"
  • Four-Hole Spacing (6¾):
    • Perimeter: 4.261"-4.569"
    • Diagonal: 6.089"-6.398
